AN INTERACTIVE CYMATICS LABORATORY

See the shape of sound.

Explore the mathematics of vibration with a responsive plate simulator. Tune, listen, compare frequencies, and create your own Chladni-inspired patterns.

01 — GENERATE02 — VISUALIZE03 — EXPERIMENT04 — EXPORT
LIVE INSTRUMENT / 01

Resonance canvas

Initializing engine
FUNDAMENTAL FREQUENCY432.00 Hz
NEARBY RESONANCE
PLATE SIMULATOR / MODAL RENDERINGREADY TO EXPLORE
MODAL RESONANCE MAP CLICK A PEAK TO TUNE1 Hz – 20 kHz · logarithmic
1 Hz101001 kHz10 kHz20 kHz
Hz
FREQUENCY1 — 20,000 HZ

How to use it

1. Choose a sound

Drag the frequency slider, type an exact value, or tap a preset: the Solfeggio tones, OM, A at 432 or 440 Hz, and more. The Keys tab gives you a piano for notes and chords, and a sweep glides between any two frequencies.

2. Or bring your own

Open the Mic tab and sing or play a steady note, and the figure follows your pitch. The File tab plays a song from your device and draws its strongest tones. Audio never leaves your browser.

3. Shape the plate

Switch between a square and a round plate, a stiff plate and a stretched skin, free and fixed edges. Change the material, size, thickness and damping, or move the driver, and the resonances move with them.

4. Look, save, share

See the figure as sand, live grains, glowing lines, a wave field, liquid, or a 3D surface you can turn. Save a PNG, JPG or WebP, the nodal lines as an SVG, or a video, and copy a link that reopens the same pattern.

What you are looking at

A tonoscope makes sound visible. When a plate or a stretched skin vibrates, some places move a lot and some stay still. Sand sprinkled on top is shaken off the moving parts and gathers along the still ones, the nodal lines, and draws the shape of the sound.

The simulator combines idealized vibration modes and weights them by a frequency response model. Near an estimated resonance, a few modes can dominate; between them, several modes blend. These images are mathematical visualizations, not calibrated predictions of a specific physical plate. Real Chladni patterns depend on mounting, geometry, material properties and how the plate is excited. Free-edge square plates in particular require more detailed plate theory than the simplified model used here.

Cymatics

The study of visible sound and vibration. The word was coined by Hans Jenny from the Greek kyma, wave.

Chladni figures

Around 1787 Ernst Chladni drew a violin bow along the edge of a sanded metal plate and published the patterns that appeared. These illustrations are inspired by those experiments.

Hans Jenny

The Swiss physician who built the tonoscope in the 1960s, a membrane over a tube that let a singer watch their own voice form figures in sand.

Solfeggio tones

A set of frequencies from 174 to 963 Hz that is popular in sound and meditation practice. The presets let you see each one. The instrument shows shapes and makes no health claims.

Questions

What is a tonoscope?

An instrument that turns sound into a visible pattern. The original was a membrane with sand on it. This one is a simulation that runs in your browser.

Is it really free?

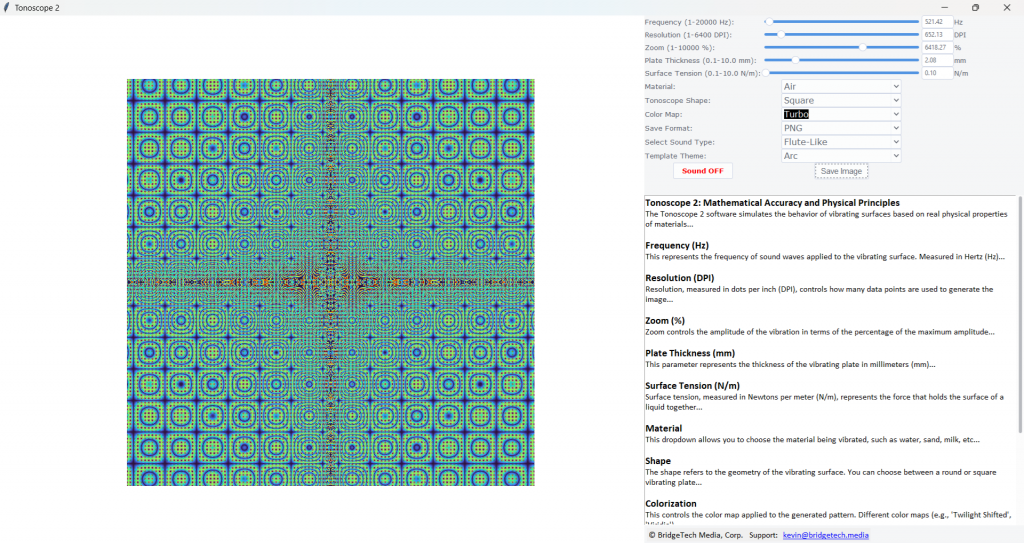

Yes. This browser-based studio is free to use without an account or software download. A separate desktop version may be available through Software Tonoscope.

Does it listen to my microphone?

Only if you press Start microphone and your browser asks for permission. The sound is analysed on your device to find its pitch. It is not recorded, stored or sent anywhere.

Which frequencies should I try?

Start with the presets, then press the arrow buttons under the plate to jump from one resonance to the next, where the figures are cleanest. A slow sweep from 100 to 2,000 Hz shows how the figures grow more intricate as the pitch rises.

Why does the same note look different when I change the plate?

Plate size, thickness, material and boundary constraints all change the modes and estimated resonances. The simulator demonstrates these relationships qualitatively; it is not a validated finite-element calculation.

What do I need to run it?

A current browser with JavaScript. WebGL enables the 3D modes; 2D works without it. Audio usually requires your first click, microphone access requires permission and a secure connection (HTTPS), and video recording / MIDI support varies across browsers. If 3D is slow, switch to Eco quality.
